FANTINELLI Srl
Digital pressure gauges
HOME | PRODUCTS | TEST GAUGES | DIGITAL PRESSURE GAUGES | CP 332
Digital pressure gauge CP 332 CP 332
• Pressure ranges
- - 1÷0; -1÷1; -1÷2,5; -1÷5; -1÷10; -1÷20; 0÷1; 0÷2,5; 0÷5; 0÷10; 0÷20; 0÷50; 0÷100; 0÷250; 0÷350; ÷500; 0÷700; 0÷1000; 0÷1500; 0÷2000 (unit of pressure bar).
• Accuracy
- ± 0,05% of full scale.
• Overpressure
- 150% of full scale.
• Display
- LCD, 5 digit (99999).
• Selectable engineering units
- mbar, bar, kPa, MPa and psi.
• Pressure connection
- G 1/2 B (1/2 Gas or BSP).
• Material of sensor
- stainless steel 17-4 PH.

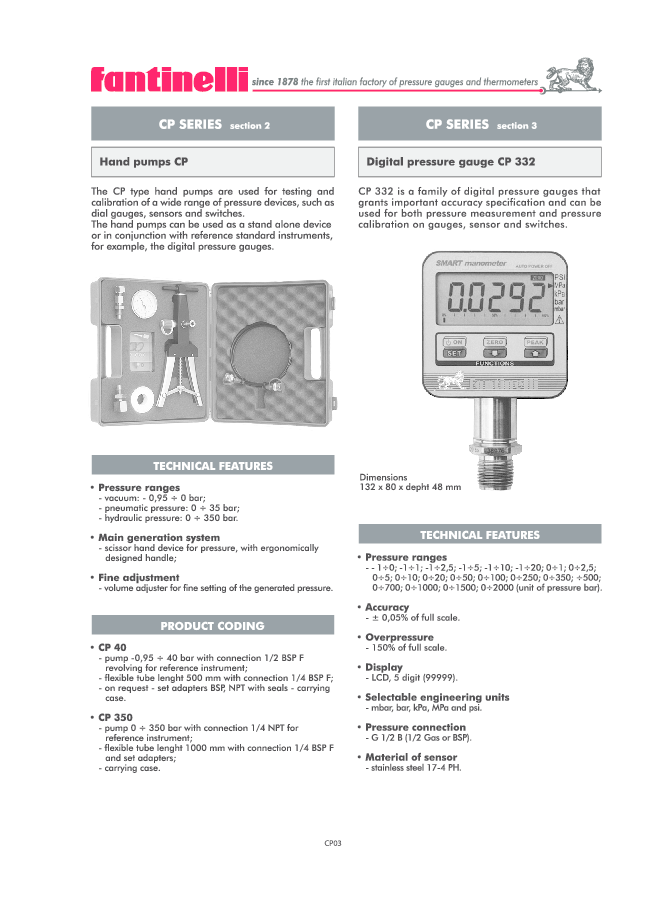

Digital pressure gauge CP 332
CP 332 is a family of digital pressure gauges that grants important accuracy specification and can be used for both pressure measurement and pressure calibration on gauges, sensor and switches.
• Pressure ranges
- - 1÷0; -1÷1; -1÷2,5; -1÷5; -1÷10; -1÷20; 0÷1; 0÷2,5; 0÷5; 0÷10; 0÷20; 0÷50; 0÷100; 0÷250; 0÷350; ÷500; 0÷700; 0÷1000; 0÷1500; 0÷2000 (unit of pressure bar).
• Accuracy
- ± 0,05% of full scale.
• Overpressure
- 150% of full scale.
• Display
- LCD, 5 digit (99999).
• Selectable engineering units
- mbar, bar, kPa, MPa and psi.
• Pressure connection
- G 1/2 B (1/2 Gas or BSP).
• Material of sensor
- stainless steel 17-4 PH.
Digital pressure gauge CP 332
CP 332 is a family of digital pressure gauges that grants important accuracy specification and can be used for both pressure measurement and pressure calibration on gauges, sensor and switches.
