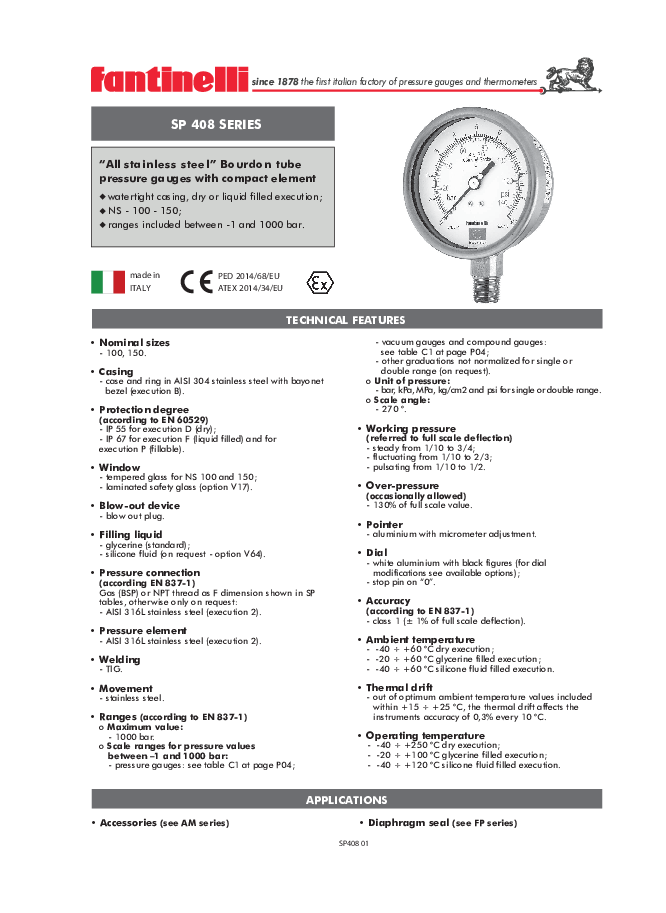

• Nominal sizes

- 100, 150.

• Casing

- case and ring in AISI 304 stainless steel with bayonet bezel (execution B).

• Protection degree (according to EN 60529)

- IP 55 for execution D (dry);

- IP 67 for execution F (liquid filled) and for execution P (fillable).

• Window

- tempered glass for NS 63, 100 and 150;

- laminated safety glass (option V17).

• Blow-out device

- blow out plug.

• Filling liquid

- glycerine (standard);

- silicone fluid (on request - option V64).

• Pressure connection (according EN 837-1) Gas (BSP), BSPT or NPT thread as F dimension shown in SP tables, otherwise only on request:

- AISI 316L stainless steel (execution 2);

• Pressure element

- AISI 316L stainless steel (execution 2);

• Welding

- TIG.

• Movement

- stainless steel.

• Ranges (according to EN 837-1)

o Maximum value:

- 1000 bar.

o Scale ranges for pressure values between –1 and 1000 bar:

- pressure gauges: see table C1 at page P04;

- vacuum gauges and compound gauges: see table C1 at page P04;

- other graduations not normalized for single or double range (on request).

o Unit of pressure:

- bar, kPa, MPa, kg/cm2 and psi for single or double range.

o Scale angle:

- 270 °.

• Working pressure (referred to full scale deflection)

- steady from 1/10 to 3/4;

- fluctuating from 1/10 to 2/3;

- pulsating from 1/10 to 1/2.

• Over-pressure (occasionally allowed)

- 130% of full scale value.

• Pointer

- aluminium with micrometer adjustment;

• Dial

- white aluminium with black figures (for dial modifications see available options).

- stop pin "0".

• Accuracy (according to EN 837-1)

- class 1 (± 1% of full scale deflection).

• Ambient temperature

- -40 ÷ +60 °C dry execution;

- -20 ÷ +60 °C glycerine filled execution;

- -40 ÷ +60 °C silicone fluid filled execution.

• Thermal drift

- out of optimum ambient temperature values included within +15 ÷ +25 °C, the thermal drift affects the instruments accuracy of 0,3% every 10 °C.

• Operating temperature

- -40 ÷ +250 °C dry execution;

- -20 ÷ +100 °C glycerine filled execution;

- -40 ÷ +120 °C silicone fluid filled execution.
